Automatic Freestanding Tyre Inflator Petrol Station Air Pumps Used Cars Out Door Gauges Filling Machine Motos Car Tire Inflators
E-010-OD-WP-N
1 set
Quantity
- Voltage:100-240VAC
- Max Pressure:101-150Psi
- Size:1260*360*360(mm)
- Place of Origin:Guangdong, China
- Brand Name:G5
- Model Number:E-010-OD-WP-N
- Warranty:12 Months
- Function:Tire Pressure Monitor, Auto Air Filling
- Air Outlet:1
- Maximum inlet air supply:160PSI
- Maximum Inflator set pressure:145PSI
- Application:Inflate Air Products
- Material:Iron
- Color:Blue
- Net weight:17.5kg
- Suit for:Motorcycle, Car, Light Truck, Bus
- Certification:ce

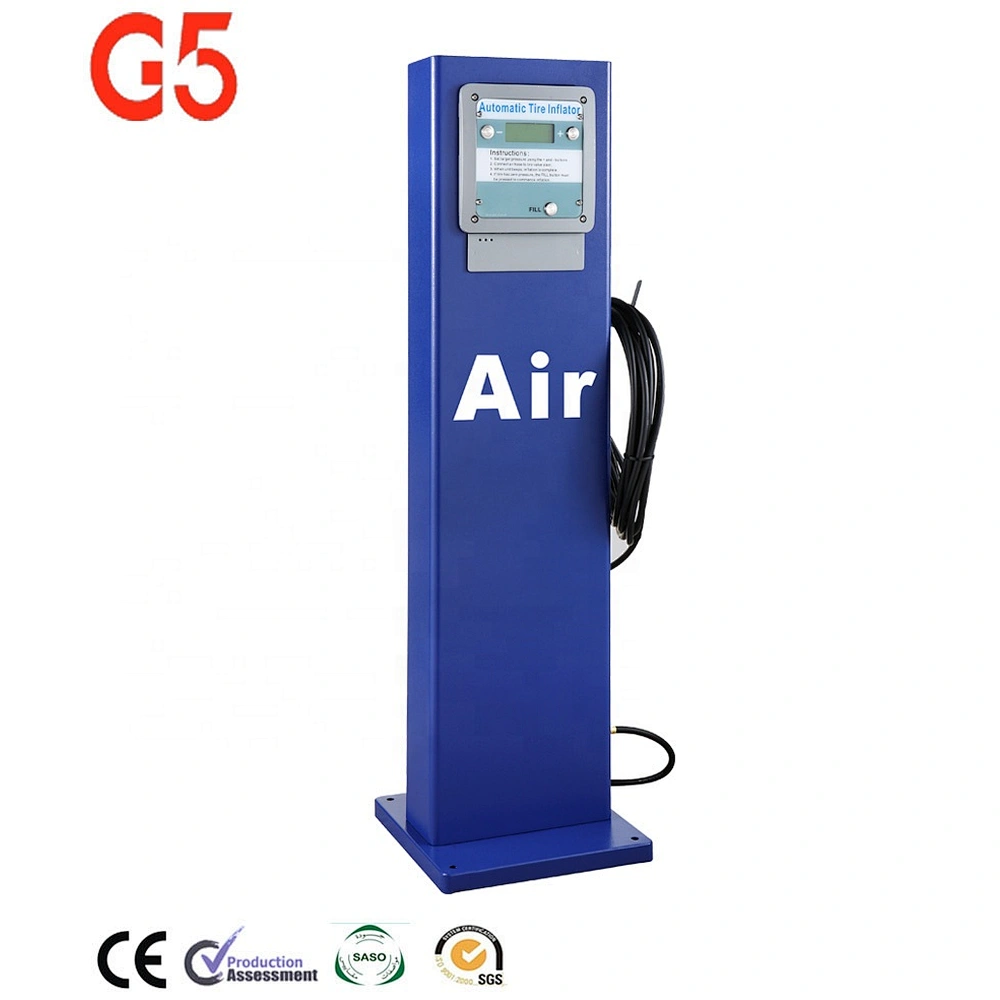

E-010-OD-WP-N Pedestal Automatic Digital Tyre Inflator(Outdoor)
| Main Feature | |
| 1. 145PSI/10bar/1000kPa output pressure make the unit a fit for almost any size automotive service facility ** | |
| 2. Rugged and durable diecast aluminium enclosure for inflator head | |
| 3. Fully automated, fully programmable, micro-processor controlled conversion system | |
| 4. Suit for: Motorcycle, Car, Light Truck, Bus * | |
| 5. Outdoor | |
| Technical Data: | Specification |
| Power Requirement:100-240Vac 50/60HZ | 1. Auto-start inflation |
| Power Consumption:10VA | 2. Automatic zero drift adjustment |
| Operating Temperature Range:-20°C/-4°F to 70°C/158°F | 3. Remain at last setting |
| Max Inlet Air/Nitrogen Supply:160PSI/11bar/1100kPa | 4. Comprehensive diagnostics and error reporting |
| Operating Range:5-145PSI/0.3-10bar/35-1000kPa | 5. Audible and visual end of the cycle signal indicators |
| Accuracy:±1PSI/0.07bar/7kPa | 6. Large backlight LCD display |
| Resolution:1PSI/0.1bar/5kPa | 7. Vandal resistant mechanical switches |
| Units of Measurement:PSI/bar/kPa | 8. Suits standard nitrogen bottle/Direct nitrogen supply from generator/Air compressor |
| Dimensions (Height*Width*Depth):1260mm*360mm*360mm 49.6"*14.2"*14.2" | 9. 1 Nos.*10M/32.8ft standard hose with single clip-on open type chuck |
| Net Weight:17.5kg/38.6lbs | Options available:Stainless steel cabinet Additional heater Additional water tap OPS function is available With E-010-OD-N ON/OFF switch |
| Gross Weight:28kg/59.5lbs | |
| Packing Size(Height*Width*Depth):225mm*1290mm*400mm 8.9"*50.8"*15.7" | |
Product Description

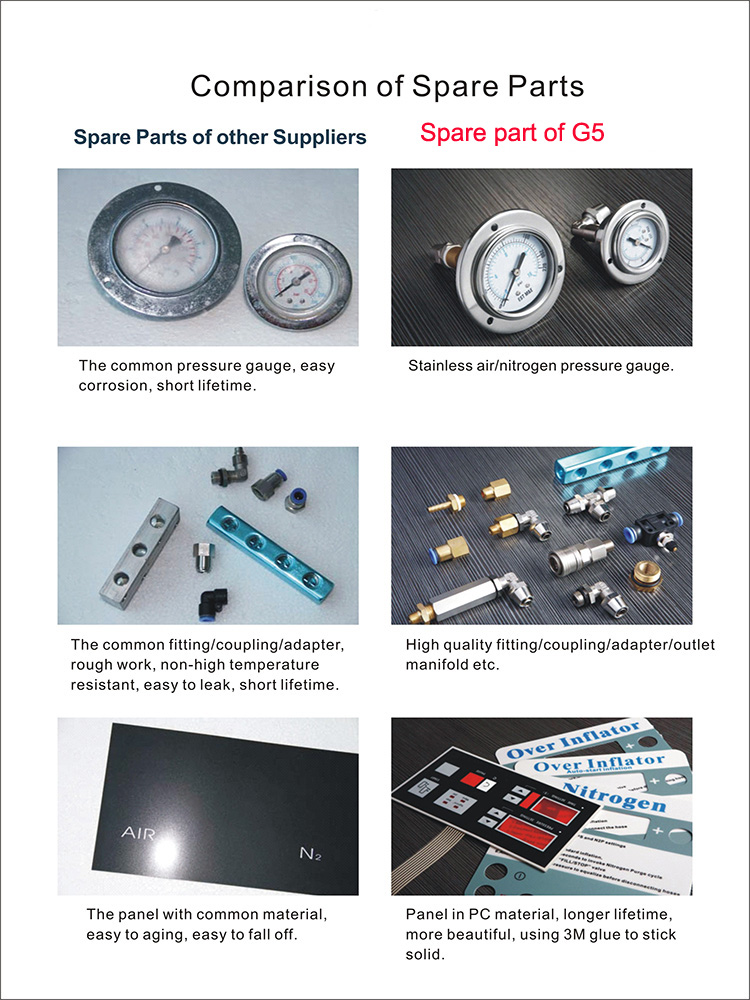

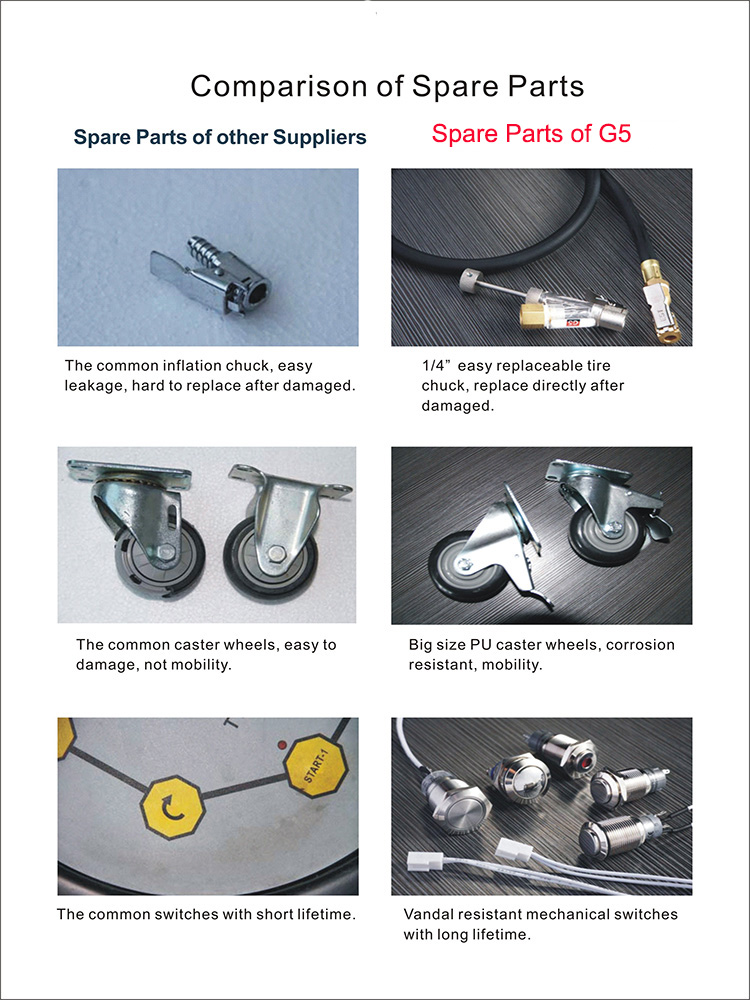

Advantages

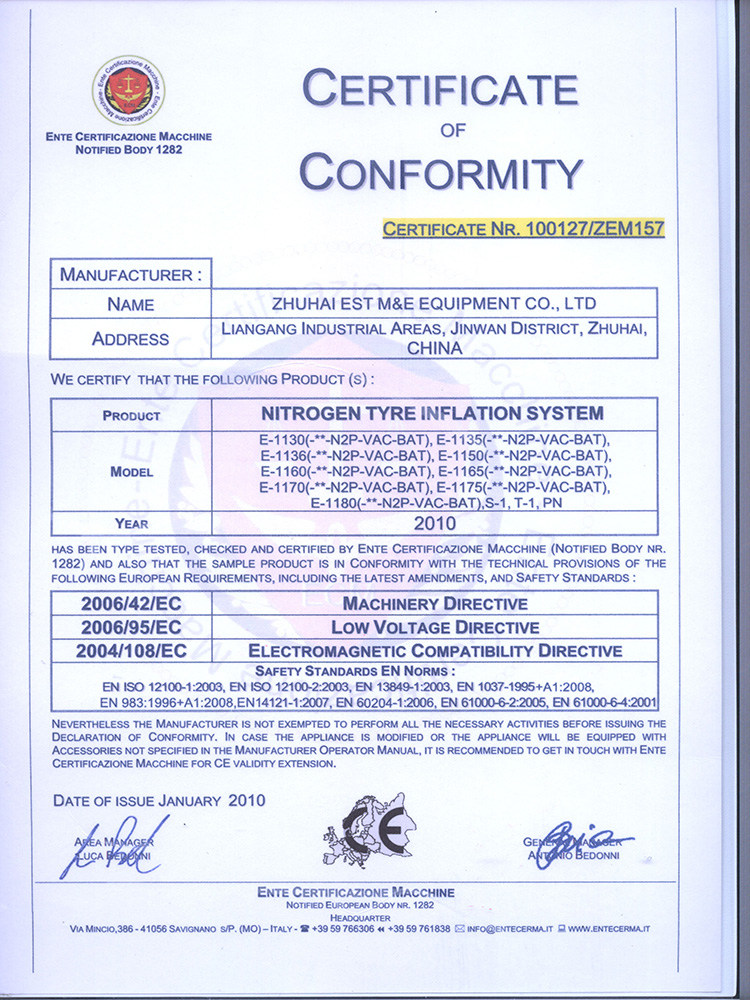

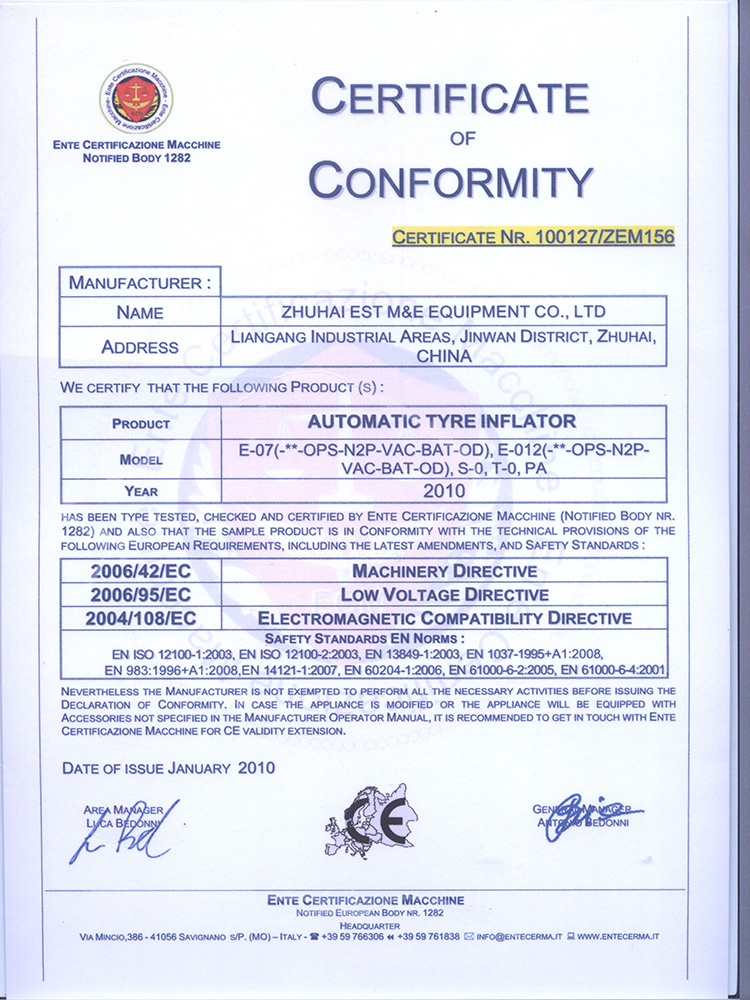

Certifications

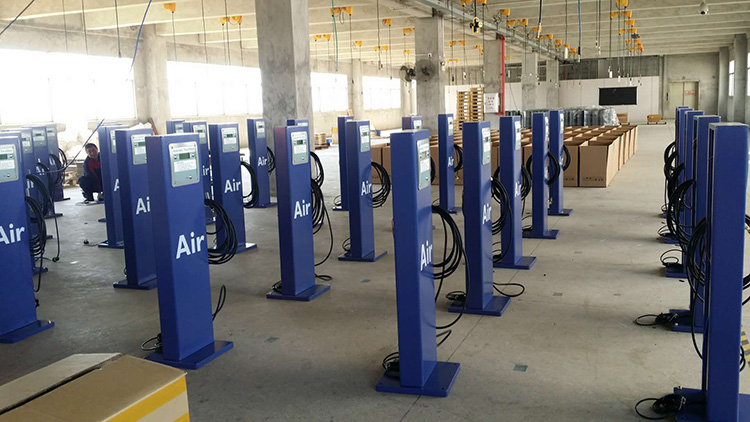

Company information

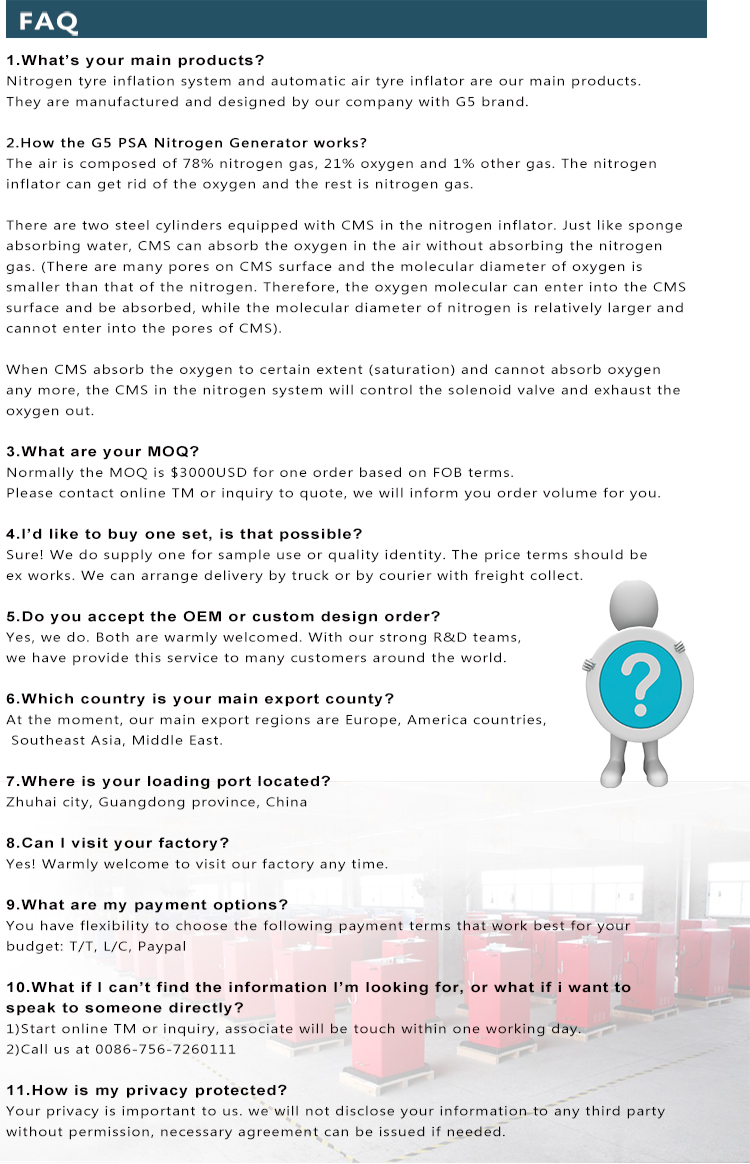

FAQ
