Tyre Inflator Air Machine Garage System G5 Nitrogen Generator Calibrador de pneu electric Pressure Nozzle Digital Tire Inflators
E-1175
1 set
ZHUHAI
Quantity
  • Voltage:100-240V
  • Max Pressure:151-250Psi
  • Size:1310*730*1000(mm)
  • Place of Origin:Guangdong, China
  • Brand Name:G5
  • Model Number:E-1175
  • Warranty:12 Months
  • Function:Tire Pressure Monitor
  • for light truck,bus,painting:net weight:320kg
  • Certification:ce

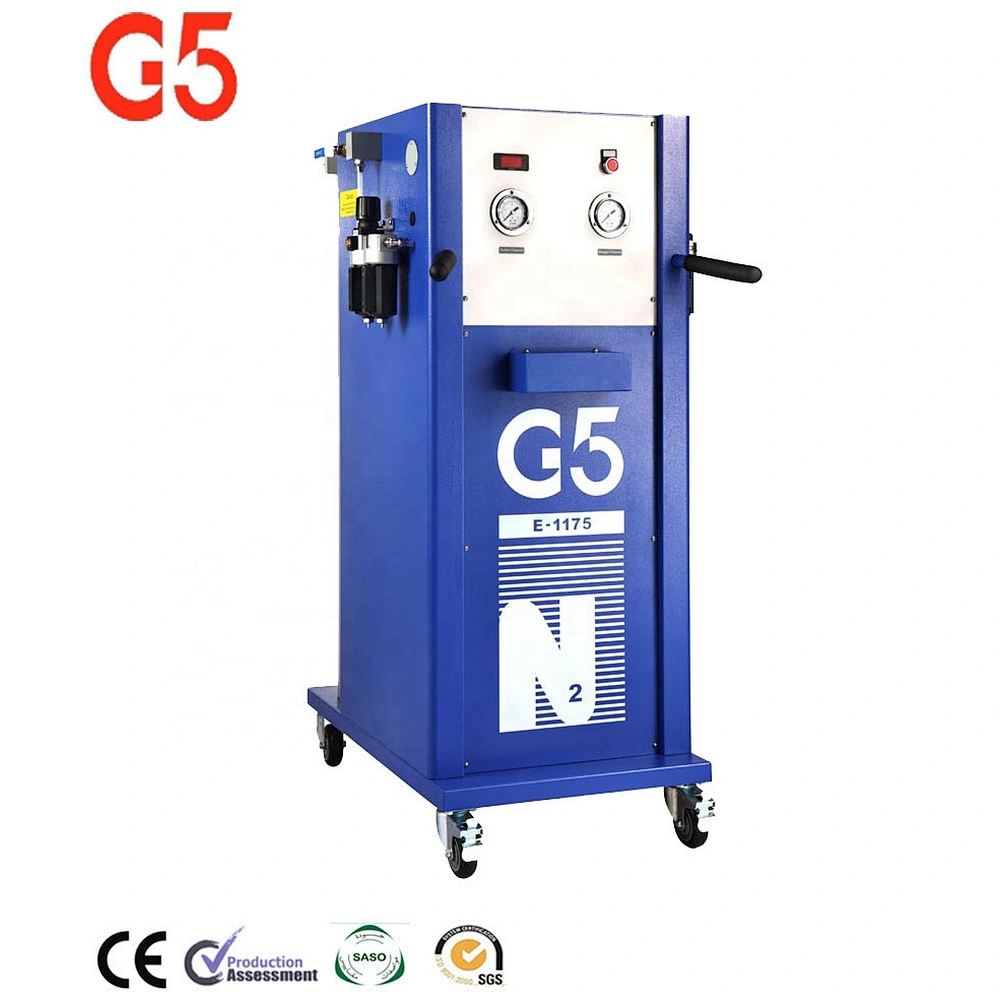

E-1175 High Pressure and High Flow Nitrogen Generator

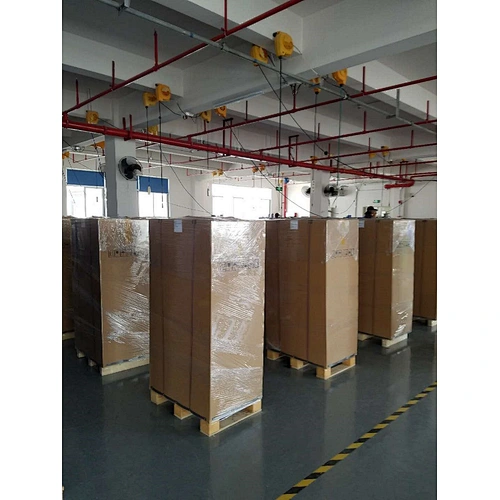

Packaging & Shipping

Main Feature
1.Suit for: Light Truck, Bus
2.Suit for: Painting
3.High Output, E-1175 can inflate a 12.00R22.5 tyre from zero to 120PSI/8.2bar in only 2.9 minutes
Technical DataSpecification
Application:Light Truck, Bus, PaintingPre-Filter/s: 2
Built-in Automatic Tyre Inflator:No Internal Nitrogen Storage Tank: No
Power Requirement: 100Vac/240Vac 50/60HZ External Nitrogen Storage Tank: 118L
Power Consumption: 100VA Inflator Display: No
Operating Temperature Range: -20°C/-4°F to 70°C/158°F Nitrogen Outlet/s: 1
Maximum Compressed Air Input: 217PSI/15bar/1500kPa 8M/26ft Hose with Closed Chuck: No
Compressed Air Input Flow: 2200L/min (78.0cfm) 10M/32.8ft Hose with Open Chuck: No
Nitrogen Purity: 95-99+% 10M/32.8ft Hose with Fitting: 1
Nitrogen Output: 508L/min (17.9cfm)Nitrogen Purity Test Port: Yes
Maximum Nitrogen Pressure in Tank: 174PSI/12bar/1200kPa Adjustable Lower Purge Pressure Limit: No
Maximum Inflator Set Pressure: No Auto-Start Inflation: No
Minimum Inflator Set Pressure: NoAutomatic Zero Drift Adjustment: No
Over Pressure Setting (OPS): No Vandal Resistant Mechanical Switches: No
Nitrogen Purge and Fill Cycle (N2P): No Net Weight: 320kg/705.5lbs
Inflator Accuracy: No Gross Weight: 355kg/783.1lbs
Resolution: No Dimensions (Height*Width*Depth): 1310*730*1000(mm)
51.6"*28.7"*39.4"
Units of Measurement: No Packing Size (Height*Width*Depth): 1450*730*1050(mm)
57.1"*28.7"*42.9"

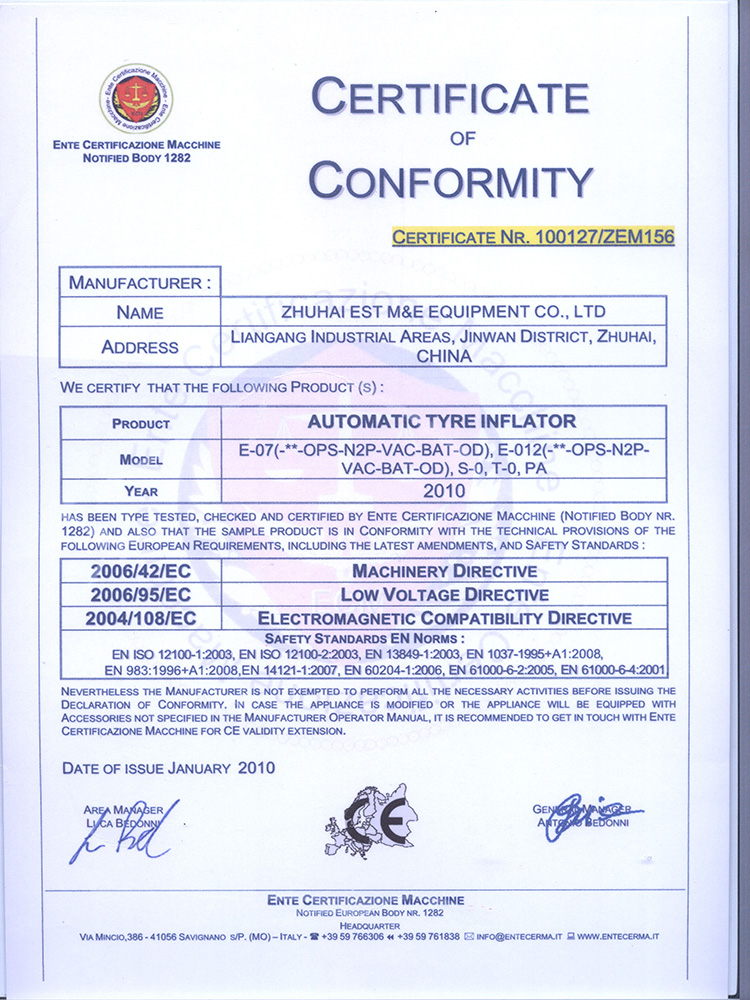

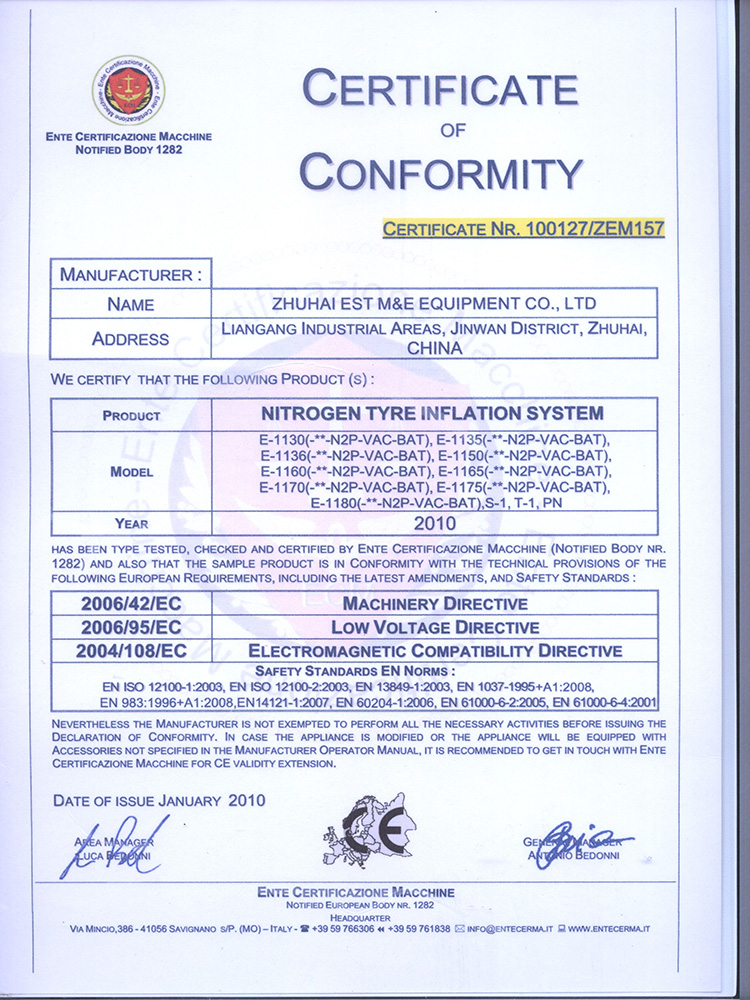

Certifications

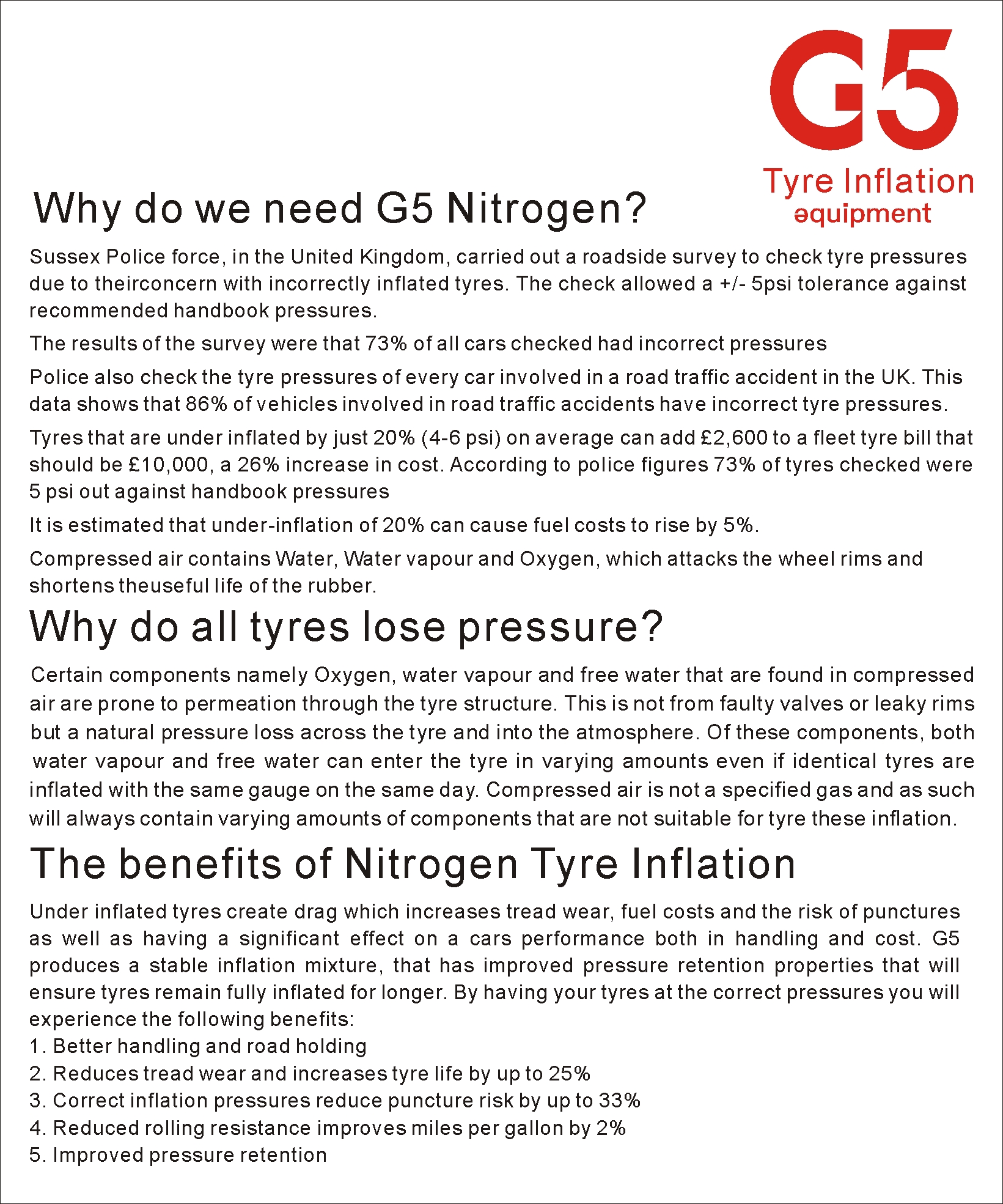

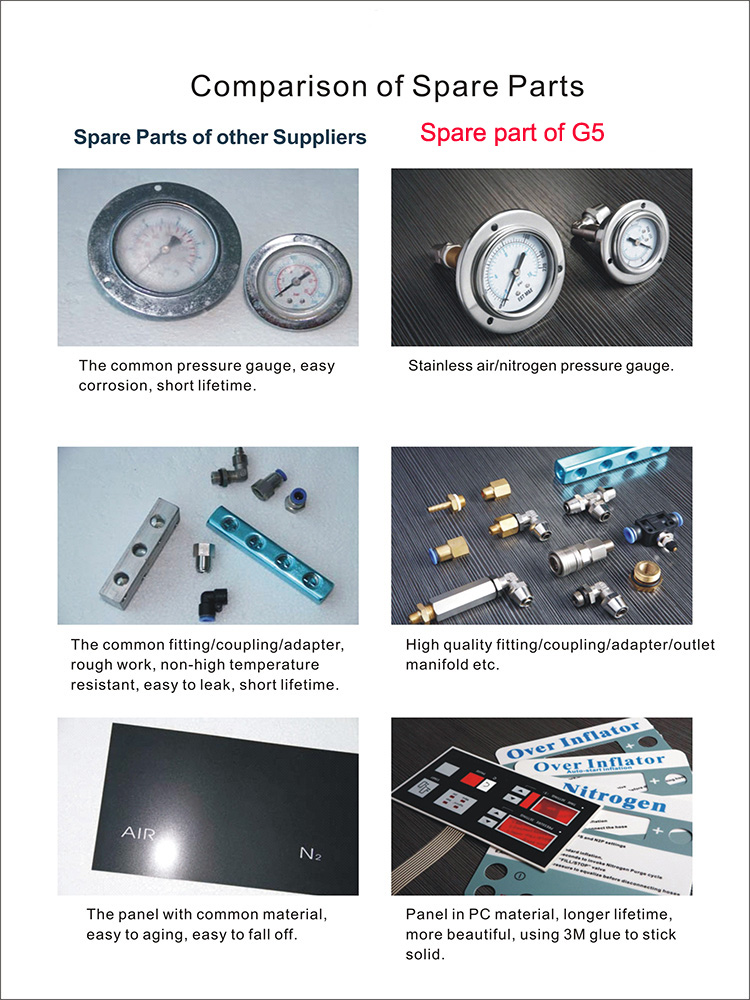

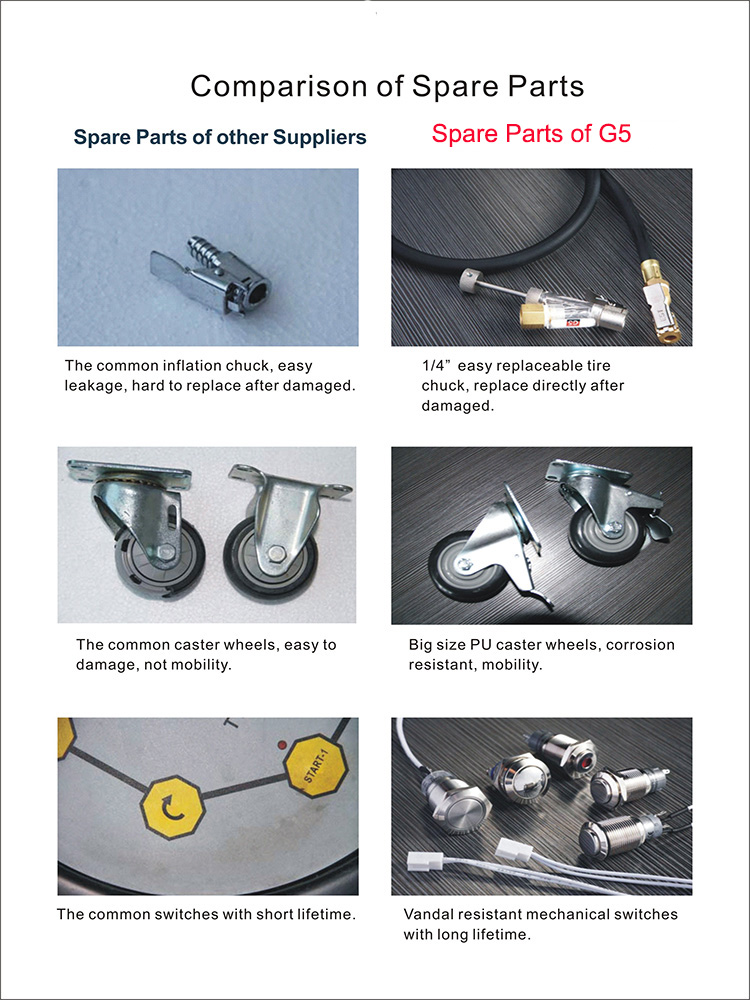

Advantages

company information

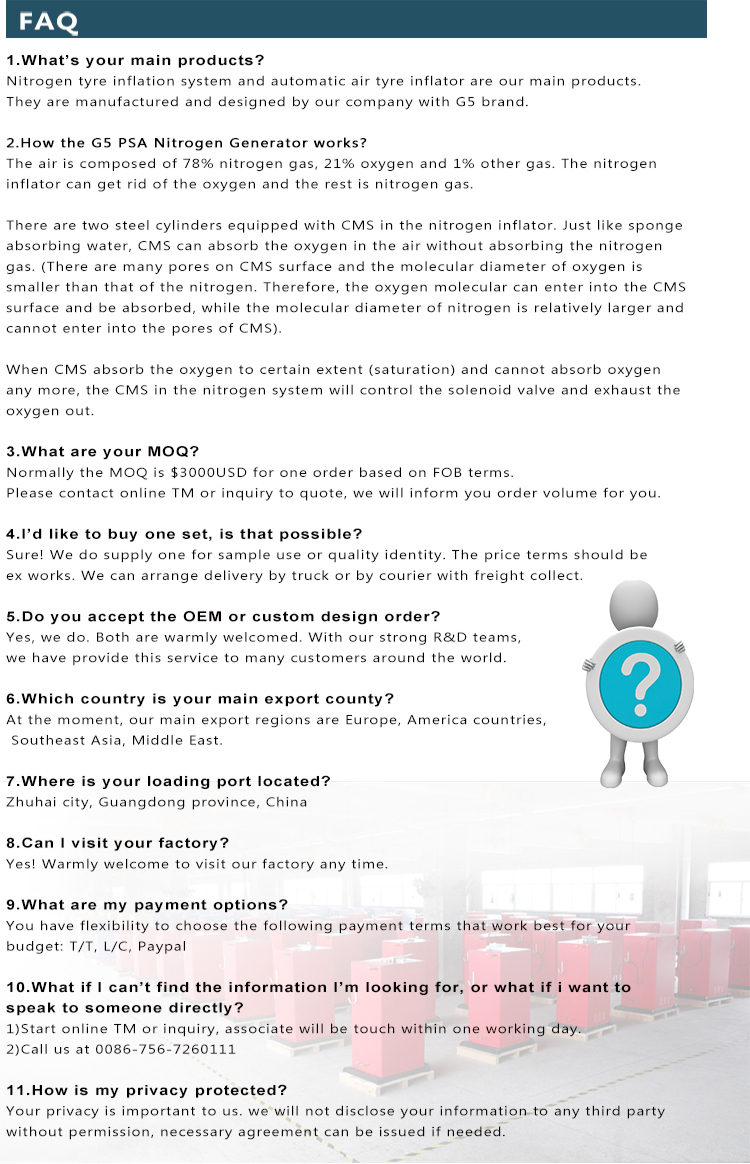

FAQ 1
