Automatic Tire Inflator Used Cars N2 G5 Nitrogen Generator Pump 97% Purity Zhuhai Car Tyre Air Filling Machines Pressure Gauges
E-1170-N2P
1 set
ZHUHAI
Quantity
- Voltage:100Vac/240Vac
- Max Pressure:151-250Psi
- Size:1310*730*620mm
- Place of Origin:Guangdong, China
- Brand Name:G5
- Model Number:E-1170-N2P
- Warranty:12 Months
- Function:Tire Pressure Monitor, Quickly Inflate
- G5 Standard Color:Blue
- Type:Electric Inflator
- Material:Metal
- Usage:Tire Inflation System
- Nitrogen Purity:above 97%
- Nitrogen output:228L/min
- Maximum inflator set pressure:162PSI
- Product name:High Flow Fast Speed Nitrogen Generator with high Purity
- Certification:ce
Product Description

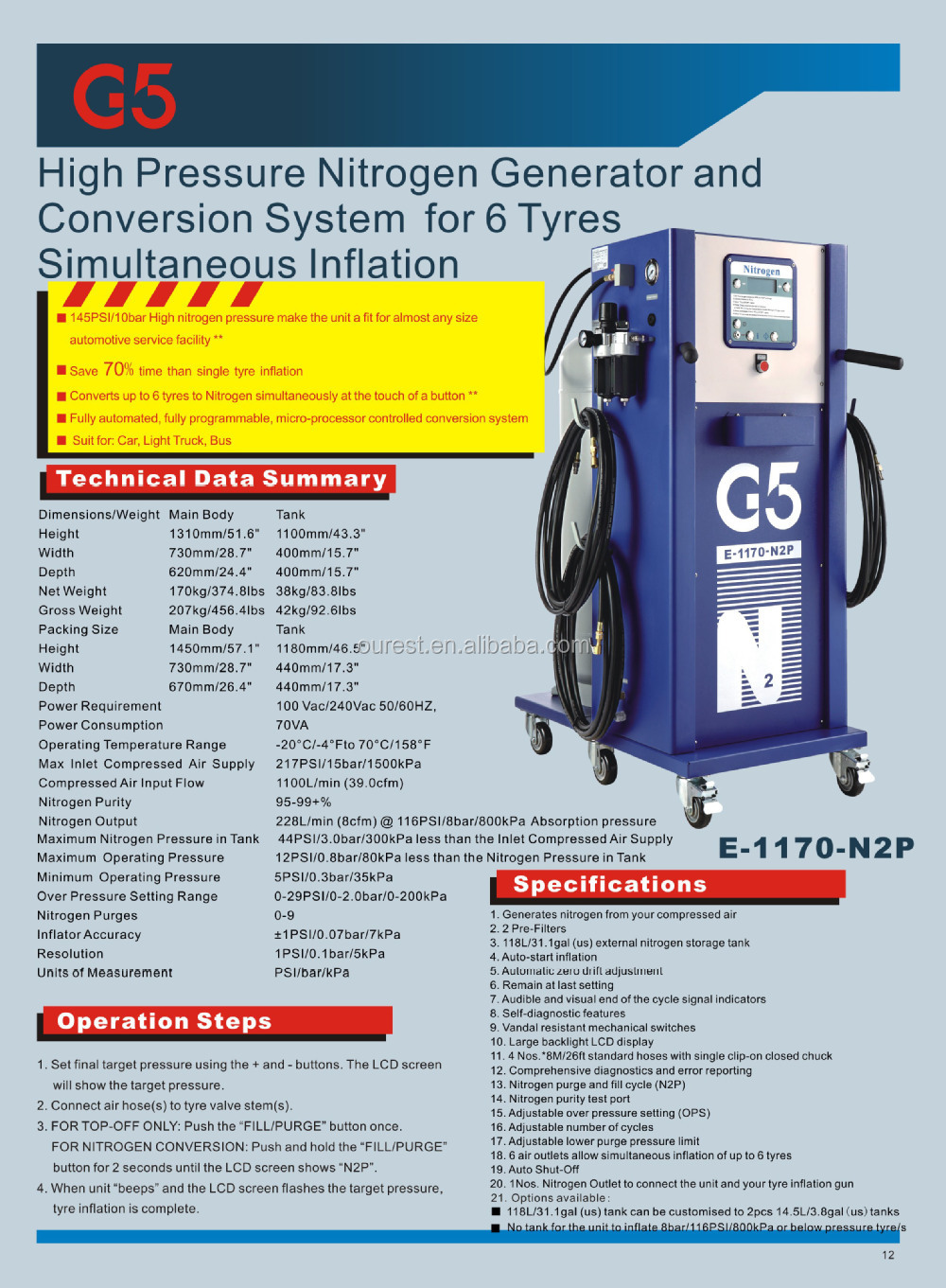

E-1170-N2P High Pressure Nitrogen Generator and Conversion System for 6 Tyres Simultaneous Inflation | |||
| Main Feature | |||
| 1.Suit for: Car, Light Truck,Bus | |||
| 2.145PSI/10bar High nitrogen pressure make the unit a fit for almost any size automotive service facility | |||
| 3.Save 70% time than single tyre inflation | |||
| 4.Converts up to 6 tyres to Nitrogen simultaneously at the touch of a button | |||
| Technical Data | Specification | ||
| Application:Car, Light Truck, Bus | Pre-Filter/s: 2 | ||
| Built-in Automatic Tyre Inflator:Yes | Internal Nitrogen Storage Tank: No | ||
| Power Requirement: 100Vac/240Vac 50/60HZ | External Nitrogen Storage Tank: 118L | ||
| Power Consumption: 70VA | Inflator Display: Large backlight LCD | ||
| Operating Temperature Range: -20°C/-4°F to 70°C/158°F | Nitrogen Outlet/s: 6 | ||
| Maximum Compressed Air Input: 217PSI/15bar/1500kPa | 8M/26ft Hose with Closed Chuck: 4 | ||
| Compressed Air Input Flow: 1100L/min (39.0cfm) | 10M/32.8ft Hose with Open Chuck: No | ||
| Nitrogen Purity: 95-99+% | 10M/32.8ft Hose with Fitting: No | ||
| Nitrogen Output: 228L/min (8cfm) | Nitrogen Purity Test Port: Yes | ||
| Maximum Nitrogen Pressure in Tank: 174PSI/12bar/1200kPa | Adjustable Lower Purge Pressure Limit: Yes | ||
| Maximum Inflator Set Pressure: 162PSI/11.2bar/1120kPa | Auto-Start Inflation: Yes | ||
| Minimum Inflator Set Pressure: 5PSI/0.3bar/35kPa | Automatic Zero Drift Adjustment: Yes | ||
| Over Pressure Setting (OPS): 0-29PSI/0-2.0bar/0-200kPa | Vandal Resistant Mechanical Switches: Yes | ||
| Nitrogen Purge and Fill Cycle (N2P): 0-9 | Net Weight: 170kg/374.8lbs | ||
| Inflator Accuracy: ±1PSI/0.07bar/7kPa | Gross Weight: 207kg/456.4lbs | ||
| Resolution: 1PSI/0.1bar/5kPa | Dimensions (Height*Width*Depth): 1310*730*620(mm) 51.6"*28.7"*24.4" | ||
| Units of Measurement: PSI/bar/kPa | Packing Size (Height*Width*Depth): 1450*730*670(mm) 57.1"*28.7"*26.4" | ||
Packaging & Shipping

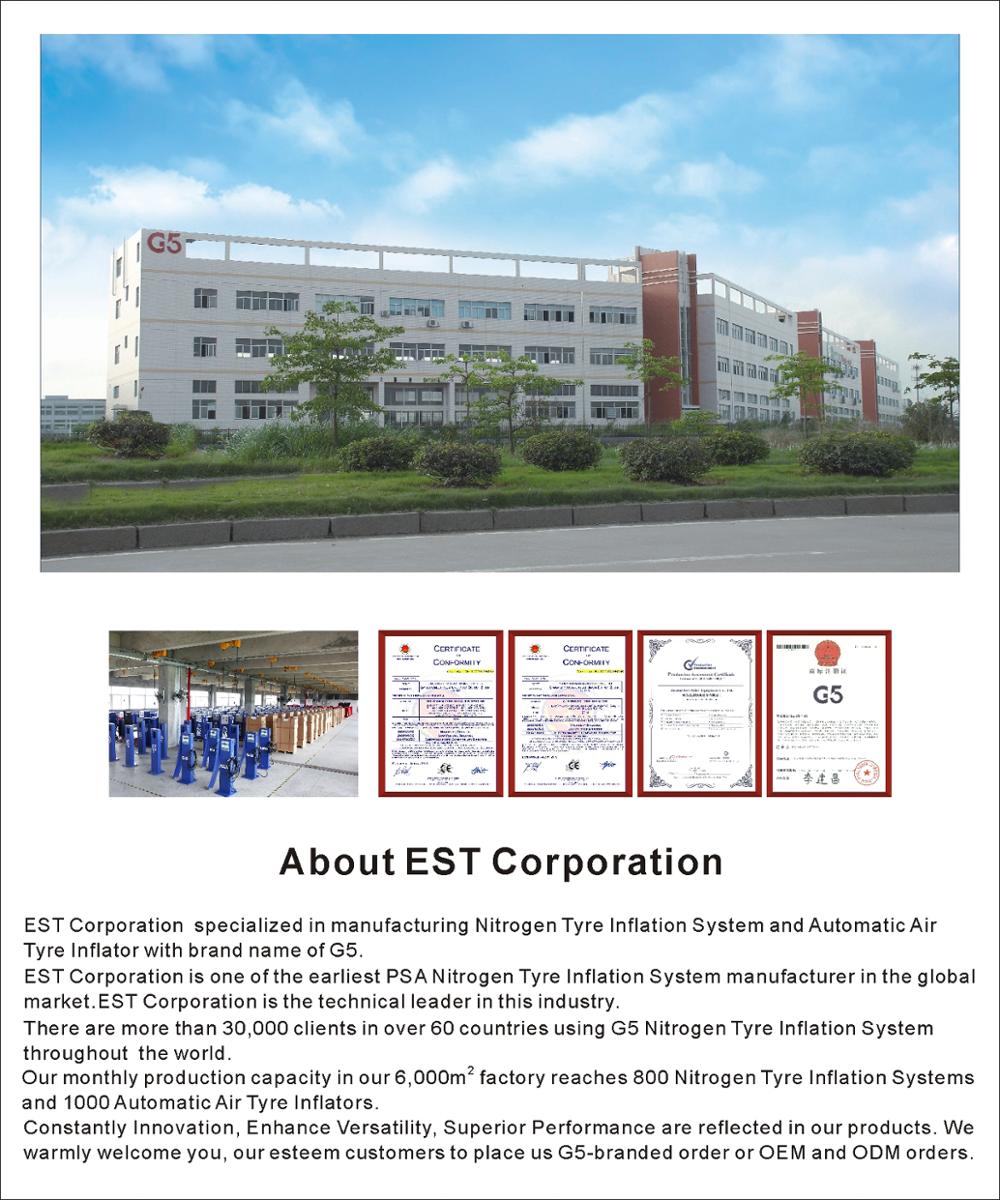

Company Information

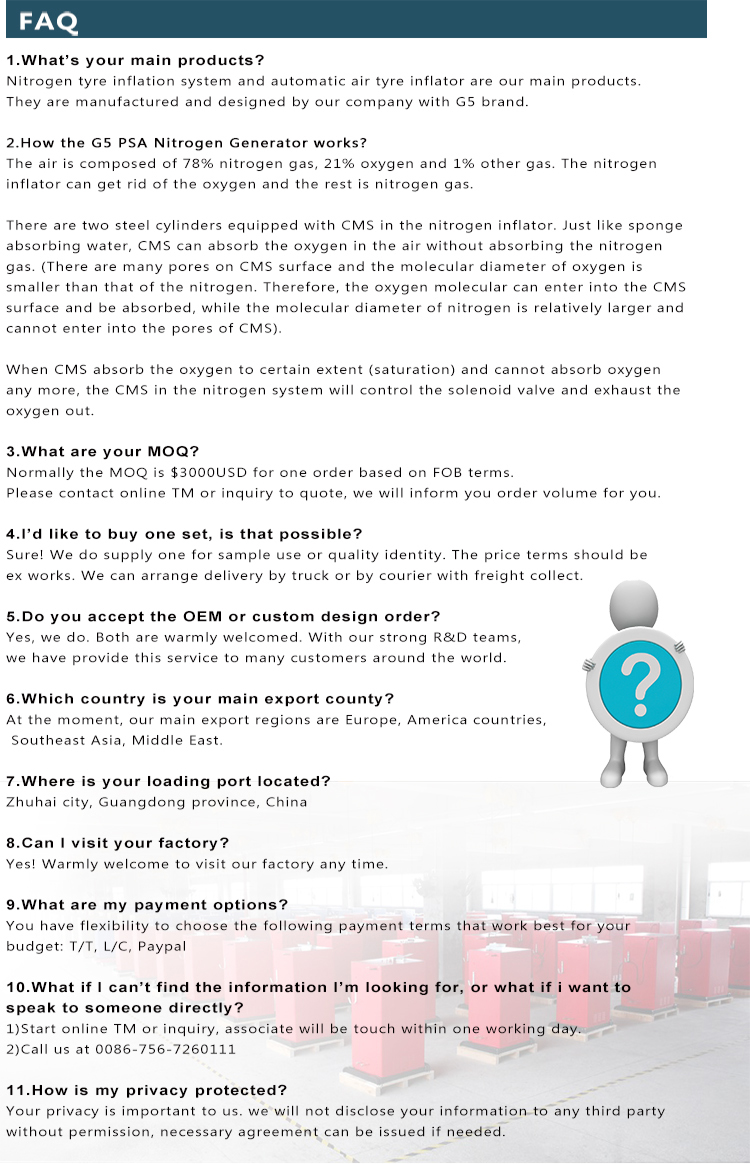

FAQ
